BCC 26-02

April 2008

Collision & Entrapment

Vulnerable age

Persons aged under 5 years old

Related hazards

Excess heat; falling on the level

HHSRS Operating Guidance:

February 2006

Multiple locations

Yes

No

Secondary hazards

Yes

No

DESCRIPTION OF HAZARDS

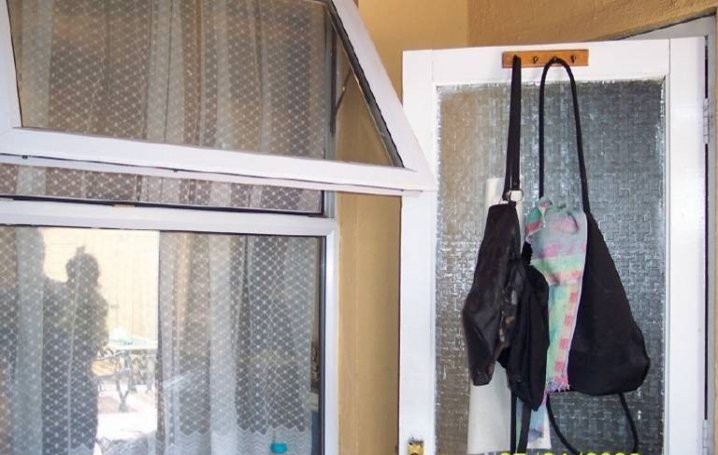

Reception room window and kitchen

door opening into utility area (above)

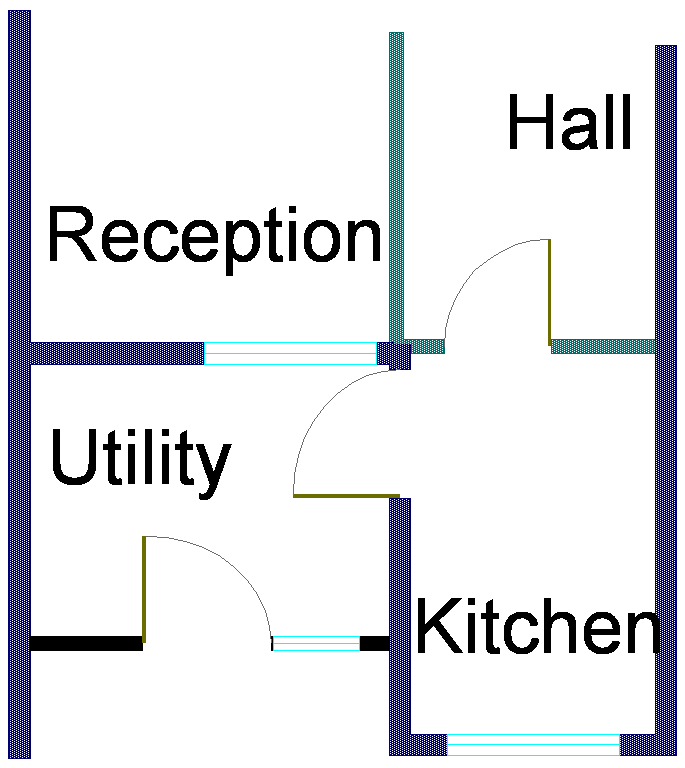

Floor Plan of utility area, reception

room and kitchen (left)

Dwelling: Two storey, mid terraced, pre-1920 house

Background: This is a traditional two storey house built around 1905, comprising two rooms, a kitchen and a utility

area on the ground floor and two rooms and a combined WC/bathroom on the first floor. The dwelling originally had an

L-shaped footprint but the rear yard area has been enclosed to form a utility area, used mainly for storage. This is to the

rear of the rear room and to the side of the kitchen and encloses both rooms. There is a back door within the rear wall

of the utility area providing access to the rear garden. The rear room is south-facing and has a pvc-u double glazed

window, the opening transom casement of which opens out into the utility area. There is no other means of ventilation to

this room. The kitchen window is in the rear wall but there is a fully glazed, internal door in the side wall which opens

out into the utility area and across the opening arc of the window to the rear room. The glazing to this door is obscured,

non-safety glass.

LIST OF RELEVANT MATTERS

LIKELIHOOD & HARM

a

Door design defects

-

Key

3

Seriously defective

b

Disrepair to doors

-

2

Defective

c

Door closer defects

-

1

Not satisfactory

d

Door location

3

-

Satisfactory/NA

e

Window design defects

-

f

Disrepair to windows

-

g

Window location

3

h

Non-safety glass

3

I

Unprotected gaps

-

j

Low headroom to doors

-

k

Low beams & ceilings

-

RATING

Score:

399

H

I

J

RATING SCORES AFTER IMPROVEMENT

IMPROVE

Likelihood to

1 in 32

Outcomes to

0.0

0.1

4.6 95.3

%

Justification

Providing a limiter to the opening transom (and providing additional and alternative means of ventilation if necessary)

and replacing the glazing to the door from the kitchen with safety glass would reduce the likelihood and spread of harms

to the average.

Av: 59

A

B

C

D

E

F

Average likelihood and health outcomes for persons aged under 5 years, 1997-1999

NEW RATING

Av: Nos

Score:

76

G

H

I

J

BCC 26-02

April 2008

HEALTH AND SAFETY RATING SYSTEM SCORES

Low

LIKELIHOOD

1 in

Av: Pre 1920 House: 40

< 4200 2400

High

1300 750 420 240 130

75

42

24

13

7.5

4

2.5

1.5 >

G

Justification

There is increased likelihood of a harmful occurrence because of the low level casement and the proximity to the

thoroughfare through the utility room. Opening the kitchen door would hit the comer of the window, which is likely to be

left opened as it is the only means of ventilation to the room. A child pushing the door open would not see the potential

collision, and this could lead to the glazing in the door breaking or the child walking into the glazing when the door stops

suddenly against the open window .

OUTCOMES

Class I

Class II

Class III

Class IV

%

Av: Pre 1920 House: 0.0

0

< 0.05 0.15 0.3

0.7

1.5

3

7

15

26

38 >

Av: 0.1

0.1

< 0.05 0.15 0.3

0.7

1.5

3

7

15

26

38 >

Av: 4.3

10

< 0.05 0.15 0.3

0.7

1.5

3

7

15

26

38 >

Av: 95.6

89.9

< 0.05 0.15 0.3

0.7

1.5

3

7

15

26

38 >

Justification

The possibility that a small child pushing the door open might collide with and break the non safety glass, and the

potential injuries to the limbs or head, justifies increasing the Class III harm.

Av: Pre 1920 House: 59

A

B

C

D

E

F

10
