down

v

bathroom

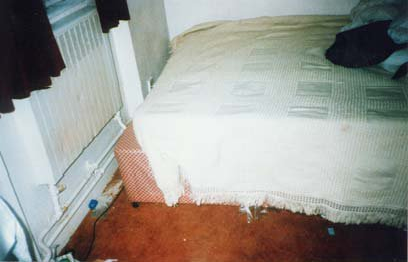

A) Heating pipes: The photographs show the uninsulated central heating pipes in the third bedroom of

a 3 bedroomed maisonette on the top two floors of a six storey gallery access, walk-up block. The

uninsulated pipes from the district heating system are exposed adjacent to the radiators in most of the

rooms in the flat, despite the temperature of the pipes being in excess of 80 degrees C. High

temperatures are required by the long distribution runs from the estate's boiler house and the tenants

have no control on the output of the system, other than the manual valves on each individual radiator.

In the third bedroom, the only position for the bed means that there is a gap between the foot of the

bed and the exposed pipes.

a

1930's 3 bedroomed maisonette

A) Uninsulated central heating pipes

OUTCOMES

A

a

Surface/liquid temperature

3

b

Exposure

3

LIST OF RELEVANT MATTERS

LIKELIHOOD

A

a

Unprotected hot surfaces

3

b

Unguarded open flames

-

c

Hot water to bath

-

d

Hot water to sink

-

e

Thermostatic taps

-

f

Kitchen layout

-

g

Inadequate separation

-

h

Disrepair

-

i

Inadequate space

3

# Secondary hazards

None

Key

3

2

1

-

A

-

Seriously defective

Defective

Not satisfactory

Satisfactory

HHSRS VERSION 2

HHSRS VERSION 2

SEPTEMBER 2004

HOT SURFACES ETC

Vulnerable age

Persons aged under 5 years

Related hazards

Fire risk, Excessive heat

Multiple locations

Secondary hazards

Yes

No

Yes

No

Maisonette

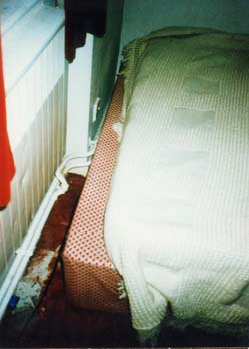

A) Gap at foot of bed

A) Plan of maisonette

a

boxroom

1.8 x 3.2

bedroom 3

3.0 x 2.2

bed

a

DESCRIPTION OF HAZARD/S

Dwelling:

Block elevation

a

rear double

bedroom

3.5 x 3.3

bedroom 2

3.5 x 2.2

A B C D E

F G

H

I

J

Average likelihood, outcomes and HHSRS score for hazards from hot surfaces and materials

by persons aged under 5 years in 1920-45 flats,1997-99.

HHSRS VERSION 2

SEPTEMBER 2004

HEALTH AND SAFETY RATING SYSTEM SCORES

1920-45 s/c Flats

1 in

18

LIKELIHOOD

Low

High

Average: 306

Example

18

< 4200 2400 1300 750 420 240 130

75

42

24

13

7.5

4

2.5

1.5 >

Justification

OUTCOMES

Class I

Class II

Class III

Class IV

Justification

RATING

The central heating pipes are both exposed and at a readily accessible height in most of

the rooms in the maisonette and particularly in the smaller bedrooms, most likely to be

occupied by small children. This and the high temperature at which this district heating

system is run and lack of individual control, means that the risk of an accident is

substantially higher than in an average dwelling with its own water-borne central heating

system.

%

Average: 0.2

0.2

< 0.05 0.15 0.3

0.7

1.5

3

7

15

26

38 >

Av: 0.0

2.2

< 0.05 0.15 0.3

0.7

1.5

3

7

15

26

38 >

Av: 15.0

21.5

< 0.05 0.15 0.3

0.7

1.5

3

7

15

26

38 >

Av: 84.9

76.1

< 0.05 0.15 0.3

0.7

1.5

3

7

15

26

38 >

Score:

28

0.2

2.2

21.5

76.1

As a small child could easily become trapped between the pipes and the bed in the third

bedroom, the probability of severe harm is increased.

Average: 23

Example

A B C D E

F

G

H

I

J

Score:

633

RATING SCORES AFTER IMPROVEMENT

IMPROVE

Justification

NEW RATING

Av: Nos

Likelihood to

1 in

320

Outcomes to

0.2

0.0 21.5 78.3

%

Insulating and covering the pipes would reduce the likelihood of a major accident to near

the average for the stock.

Improved
